BRC-AM7 PRO CAGE KIT by Treefort

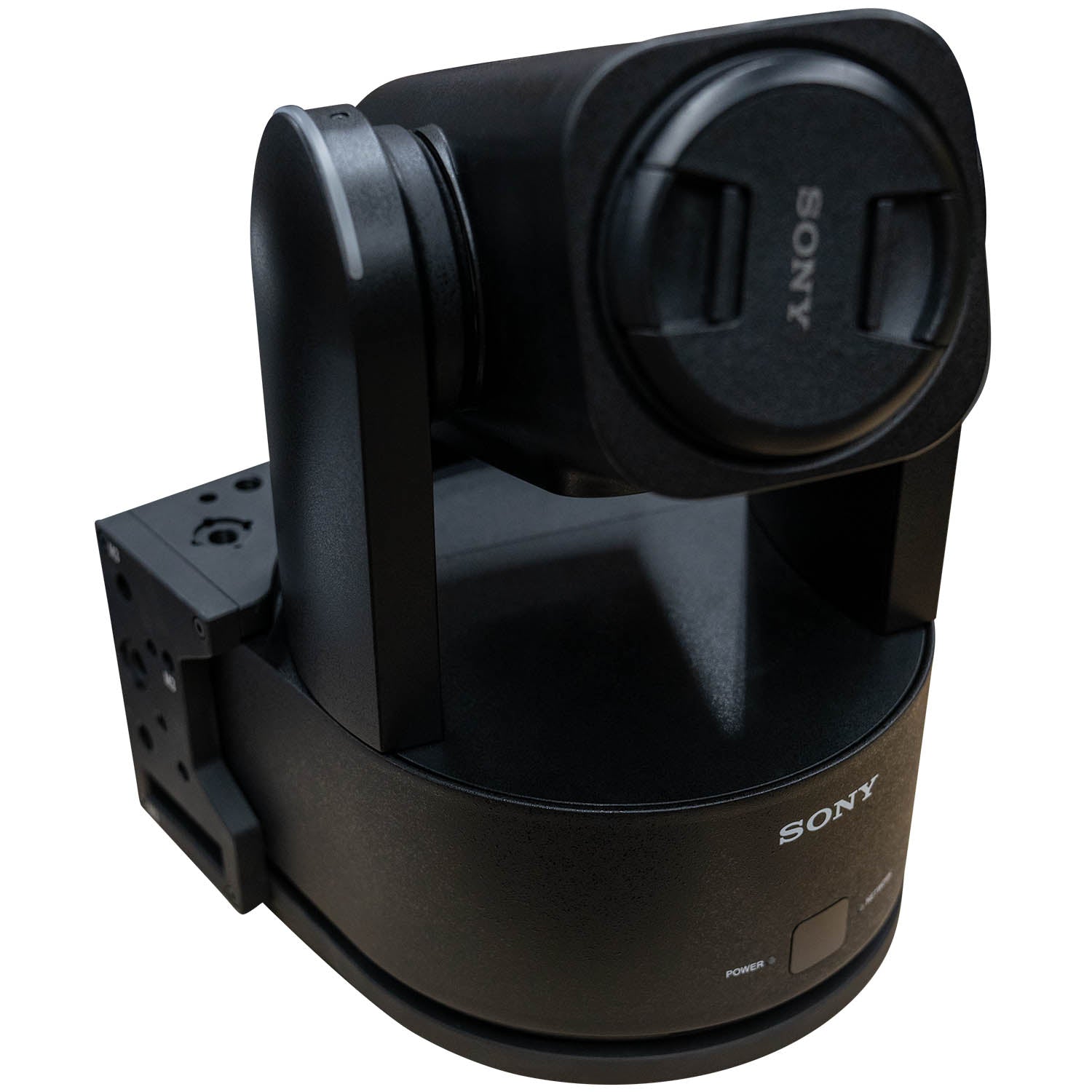

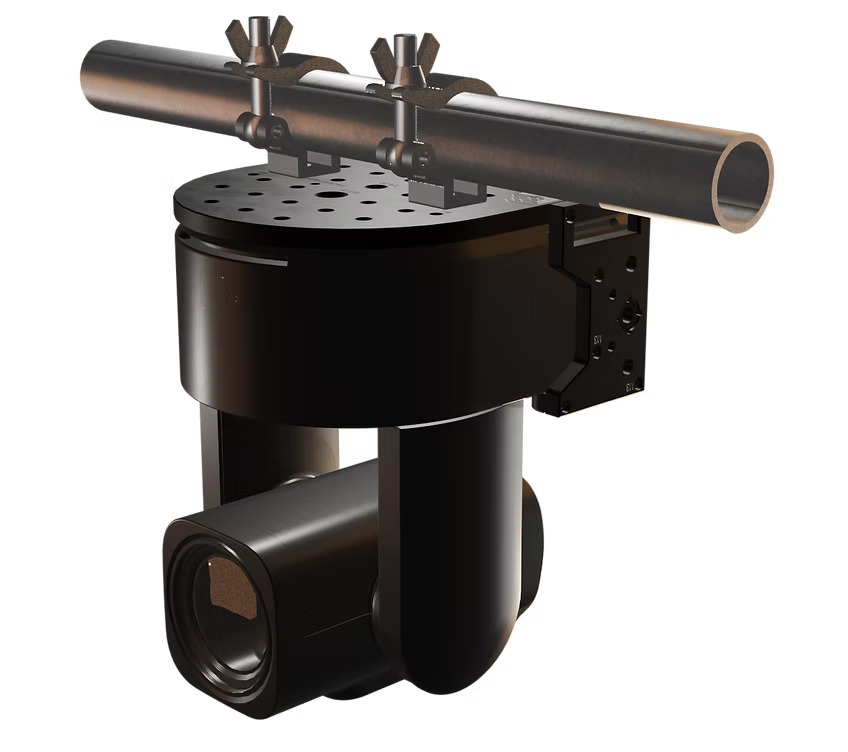

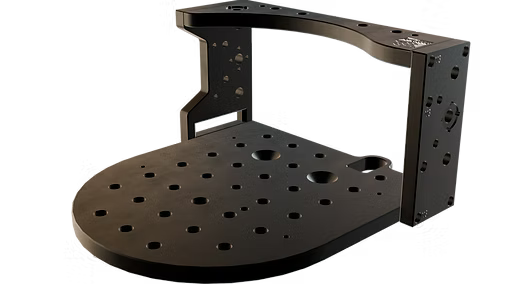

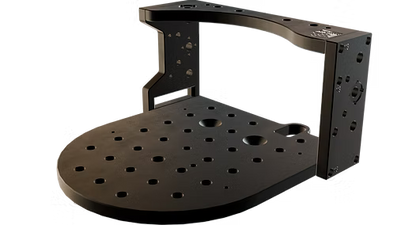

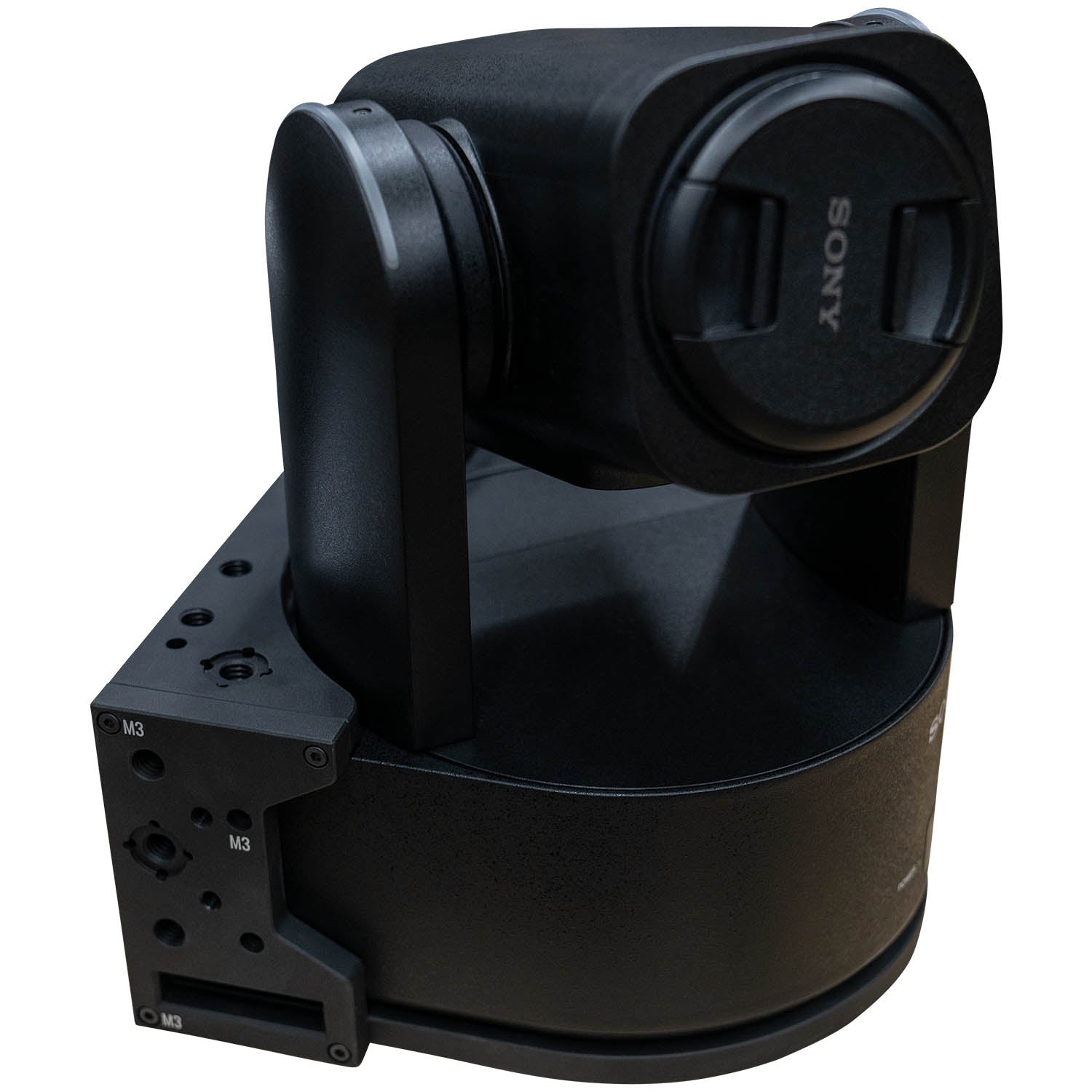

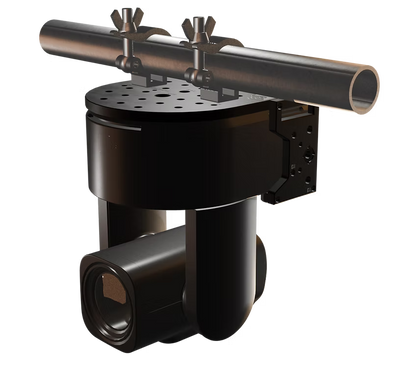

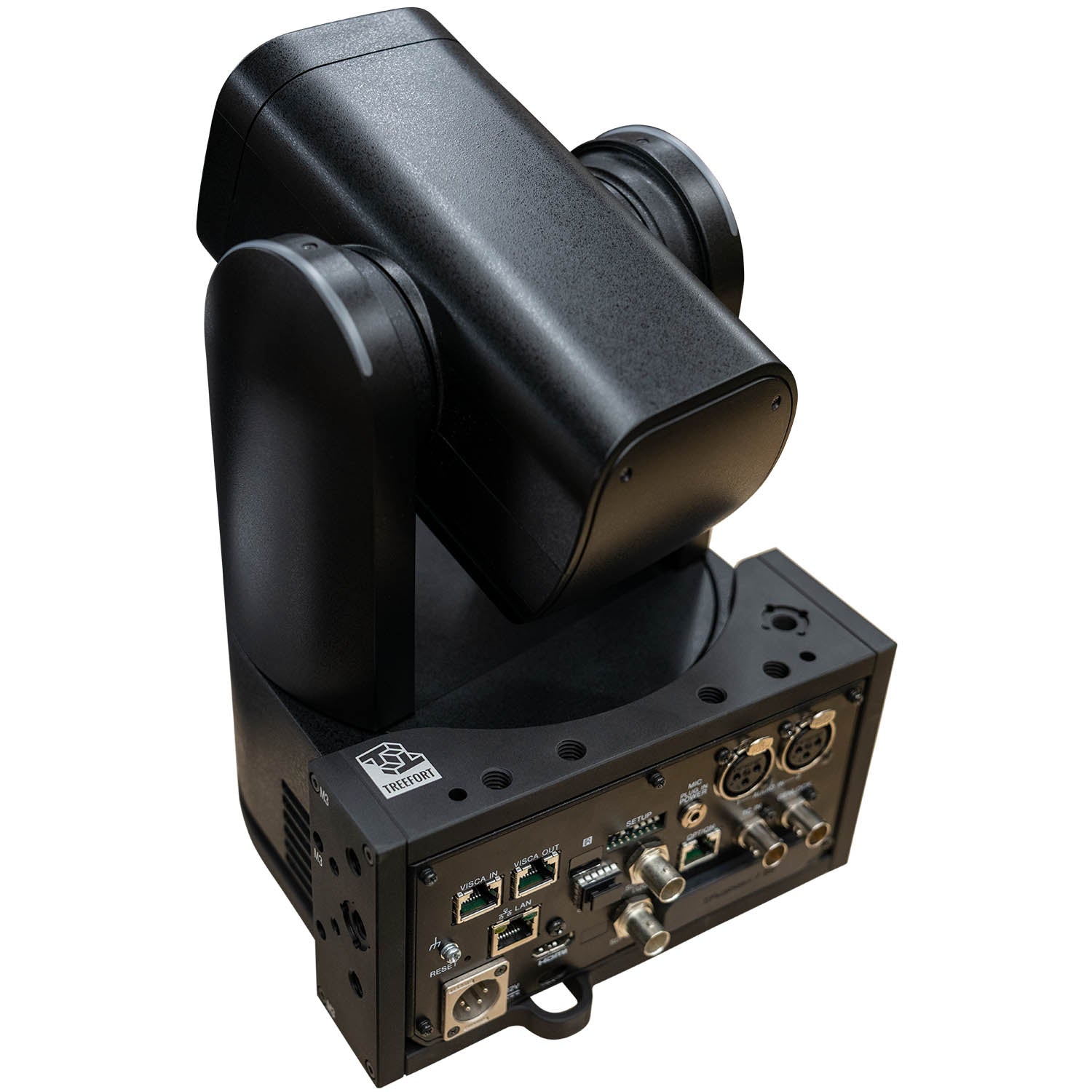

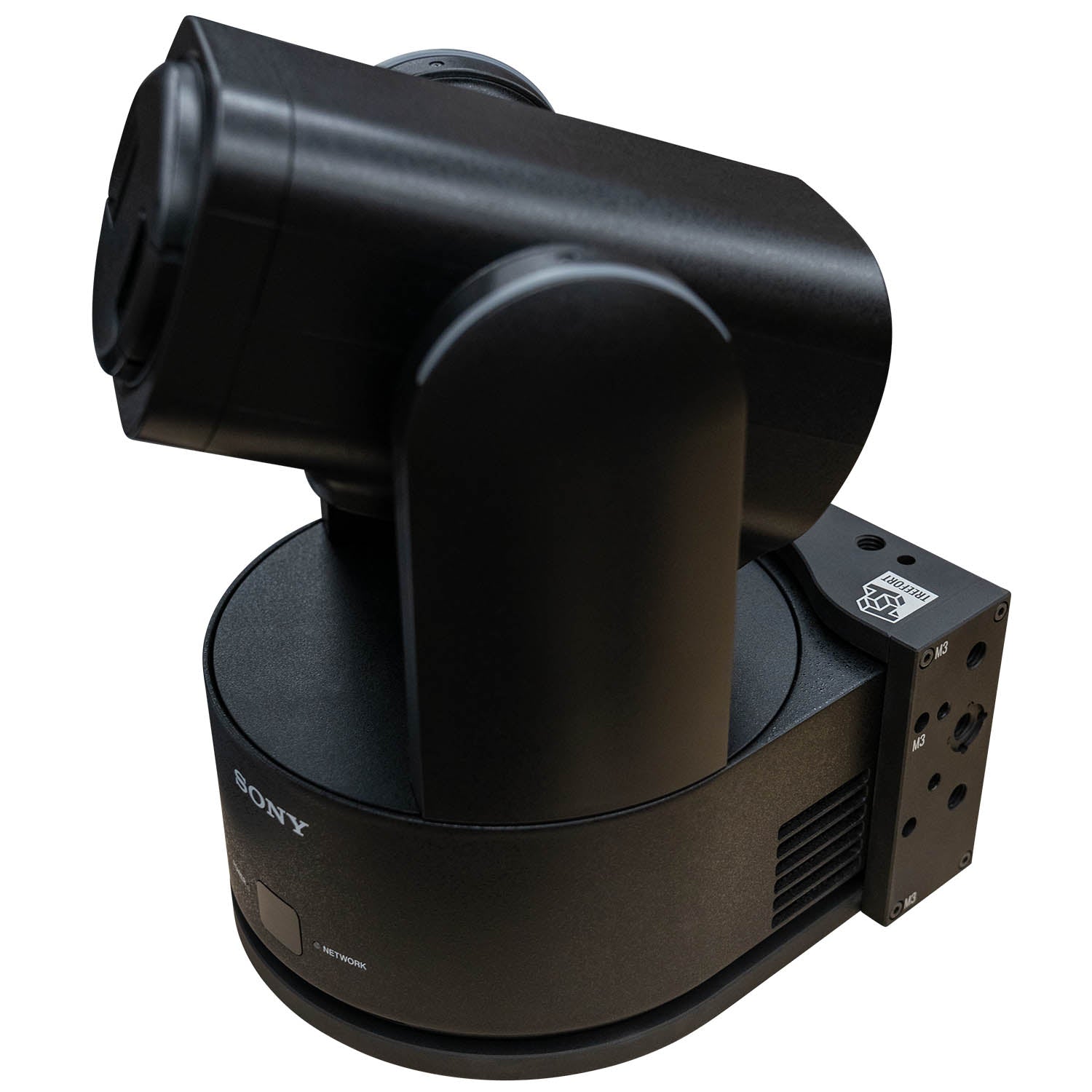

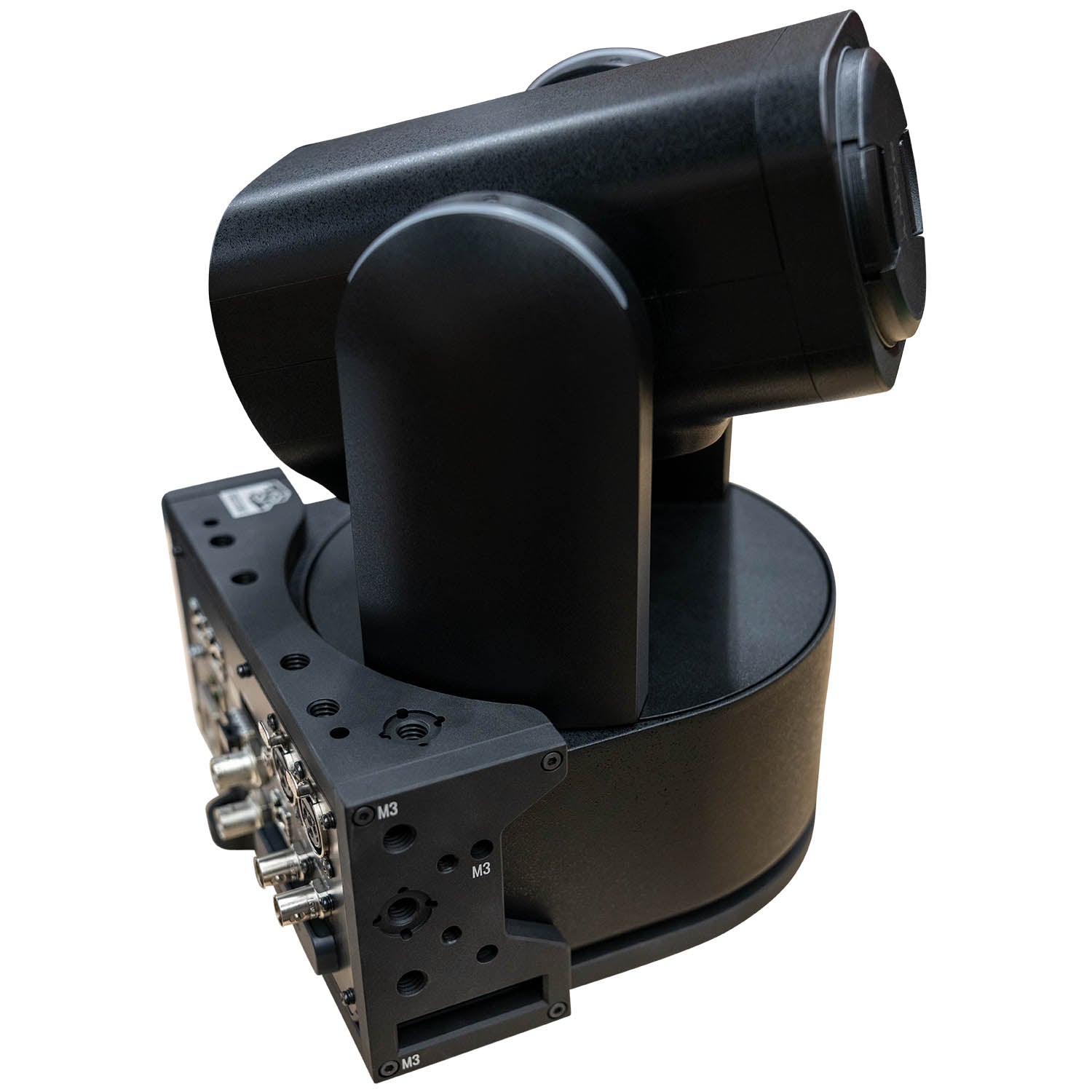

Treefort’s BRC-AM7 Pro Cage Kit is crafted to offer limitless configuration options for your Sony® BRC-AM7 PTZ camera, making rigging fast and secure. Based on the design of Treefort’s FR7 Pro Cage Kit, this sturdy cage system adapts seamlessly to any shooting condition. Constructed from durable 6061 aluminum, the BRC-AM7 Pro Cage Kit is designed to handle rigorous rigging tasks where both versatility and safety are essential.

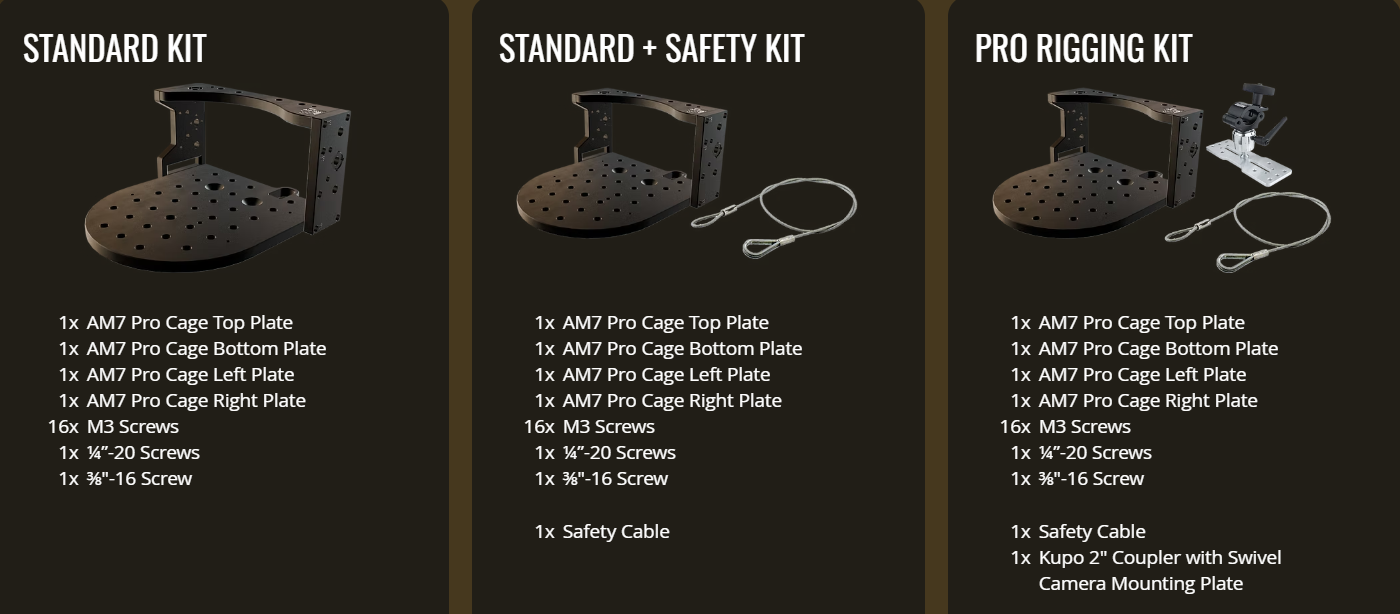

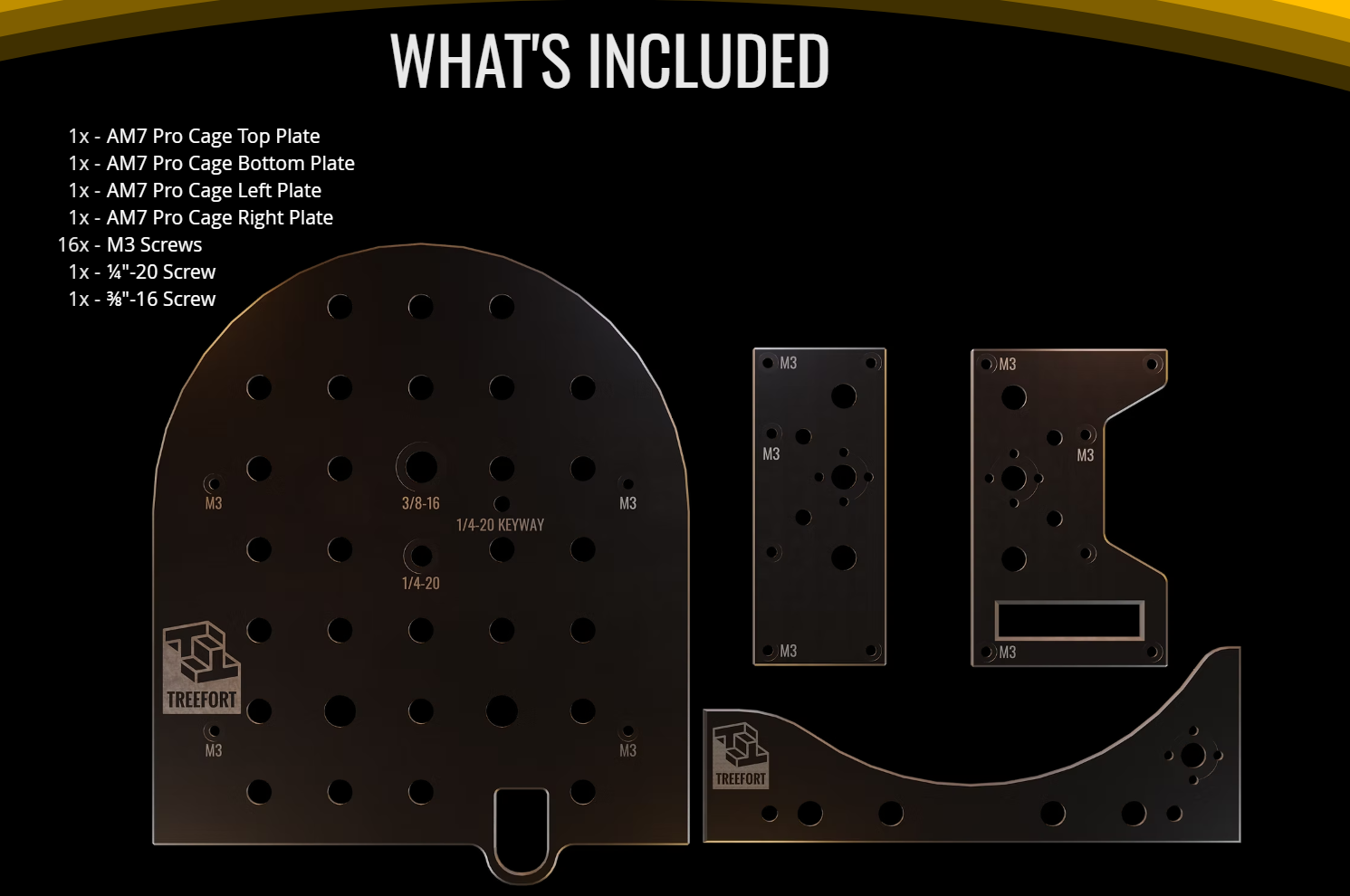

Treefort BRC-AM7 Pro Cage Kit - Standard Kit Includes:

- (1) AM7 Pro Cage Top Plate
- (1) AM7 Pro Cage Bottom Plate
- (1) AM7 Pro Cage Left Plate
- (1) AM7 Pro Cage Right Plate
- (16) M3 Screws
- (1) ¼"-20 Screw
- (1) ⅜"-16 Screw

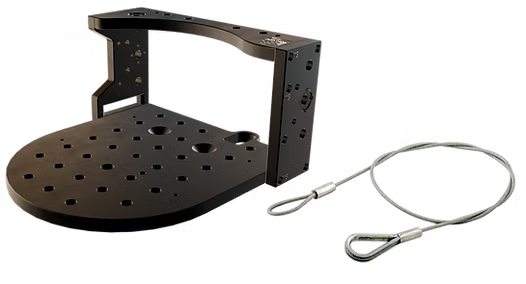

Treefort BRC-AM7 Pro Cage Kit - Standard + Safety Kit Includes:

- (1) AM7 Pro Cage Top Plate
- (1) AM7 Pro Cage Bottom Plate
- (1) AM7 Pro Cage Left Plate
- (1) AM7 Pro Cage Right Plate
- (16) M3 Screws
- (1) ¼"-20 Screw
- (1) ⅜"-16 Screw
- (1) Safety Cable

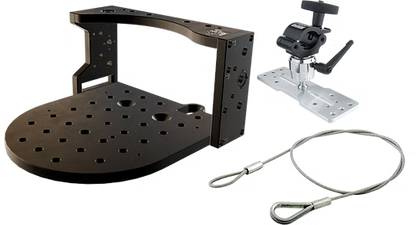

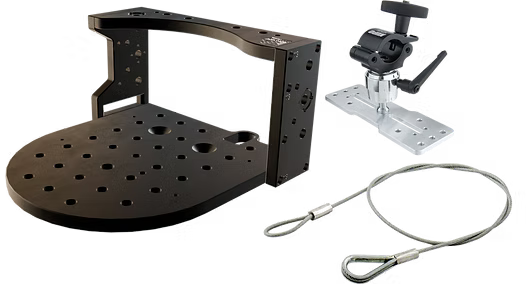

Treefort BRC-AM7 Pro Cage Kit - Pro Rigging Kit Includes:

- (1) AM7 Pro Cage Top Plate
- (1) AM7 Pro Cage Bottom Plate
- (1) AM7 Pro Cage Left Plate
- (1) AM7 Pro Cage Right Plate
- (16) M3 Screws
- (1) ¼""-20 Screw
- (1) ⅜""-16 Screw
- (1) Safety Cable
- (1) Kupo 2" Coupler with Swivel Camera Mounting Plate

SPECS:

Top Plate:
- (2) 1/4"-20 threaded bolt holes
- (4) 3/8"-16 threaded bolt holes
- (1) 3/8"-16 threaded bolt holes & ARRI® locating pins

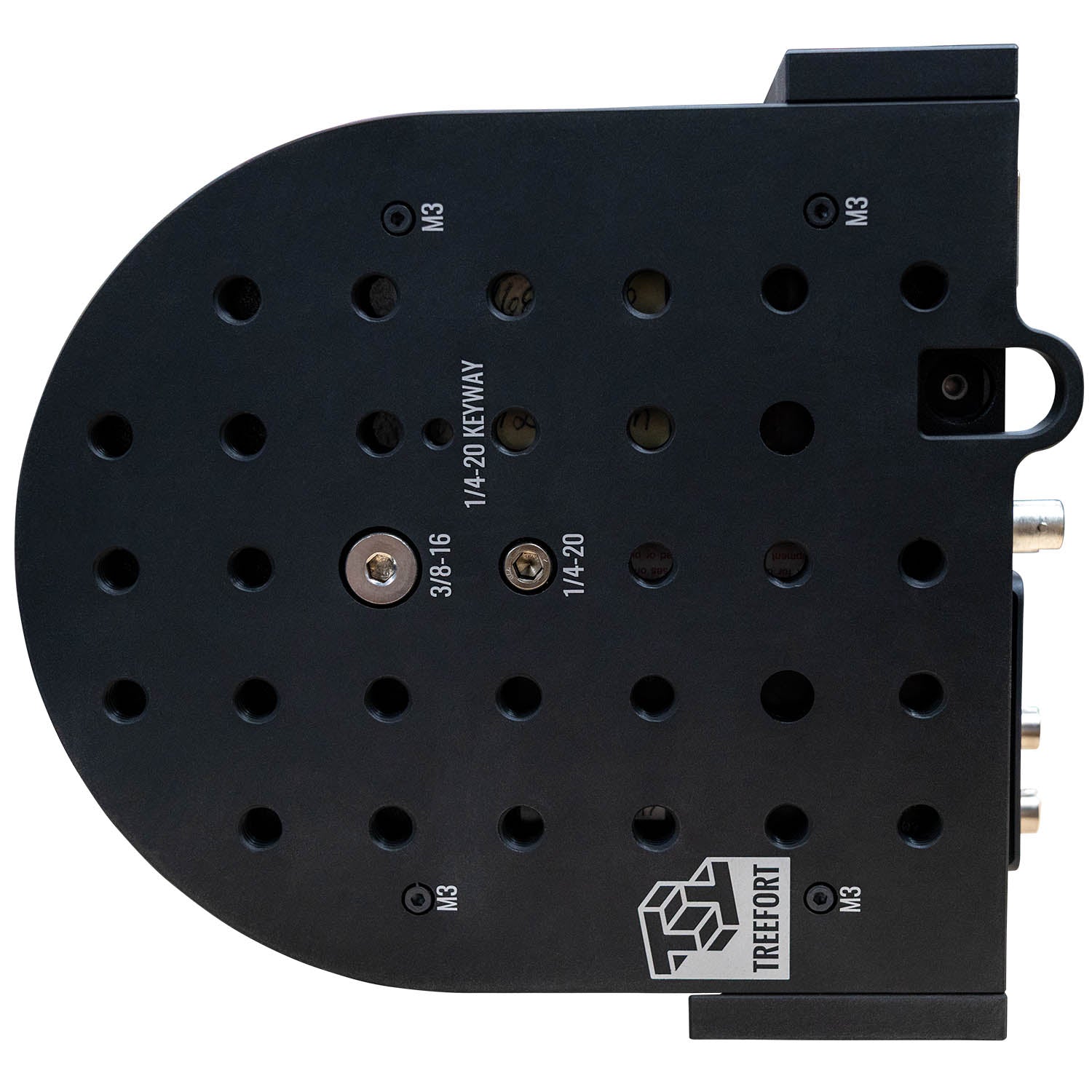

Bottom Plate:
- (28) 3/8"-16 threaded bolt holes (1" on center)
- (2) 3/8"-16 countersunk
- (1) Built-in D ring for cable strain relief and safety

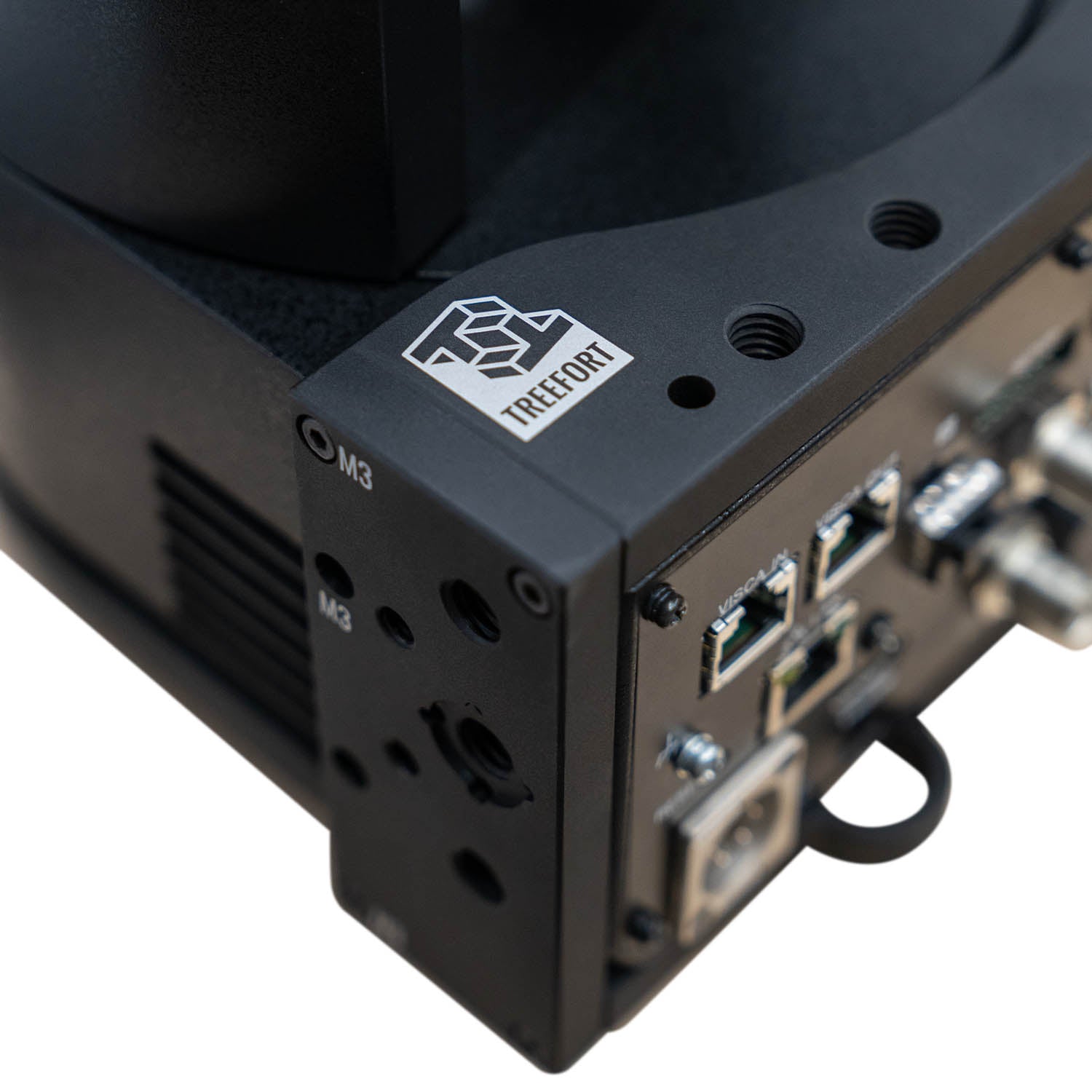

Side Plates:
- (2) 1/4"-20 threaded bolt holes
- (2) 3/8"-16 threaded bolt holes
- (1) 3/8"-16 threaded bolt holes with ARRI® locating pins
