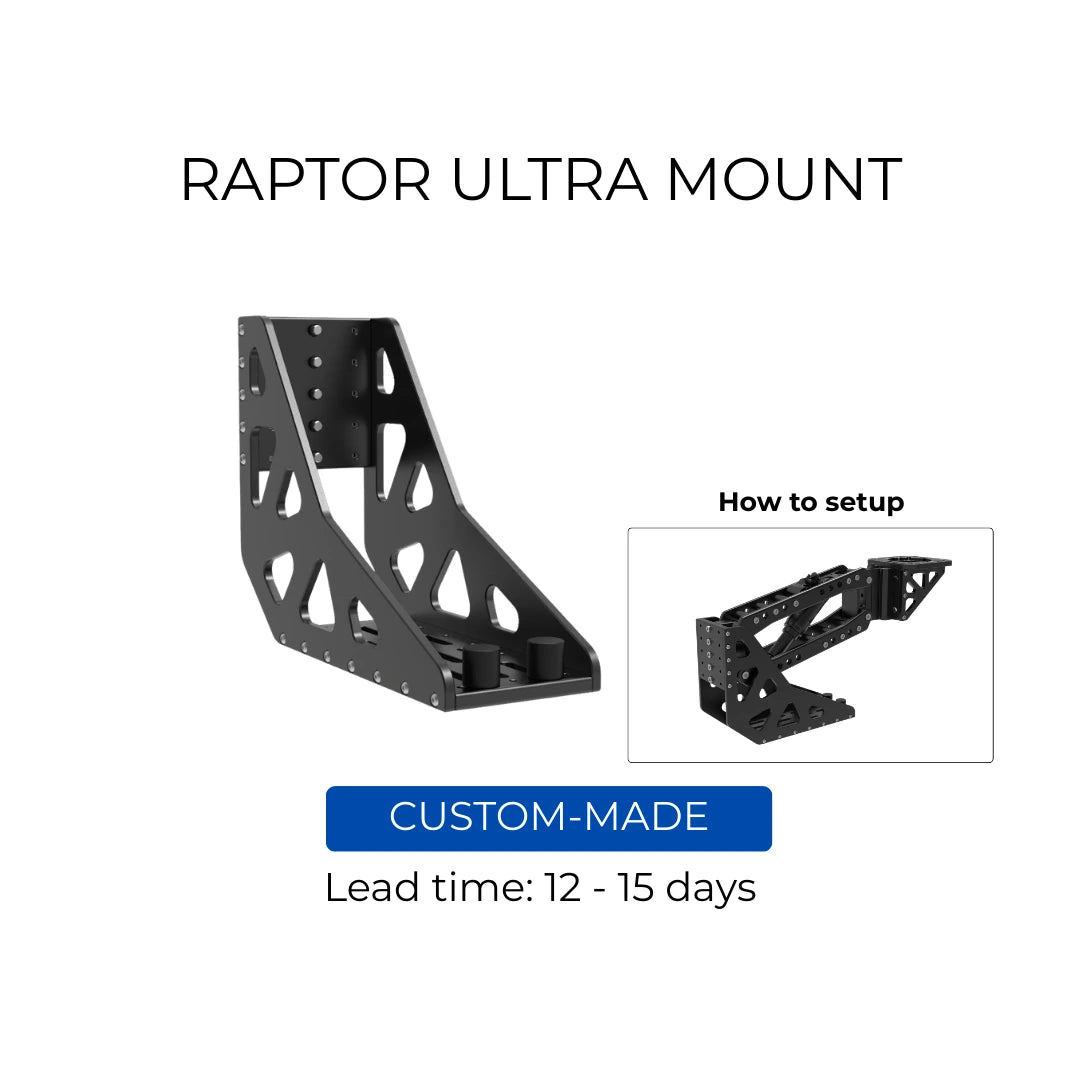

Raptor Z Ultra Mount

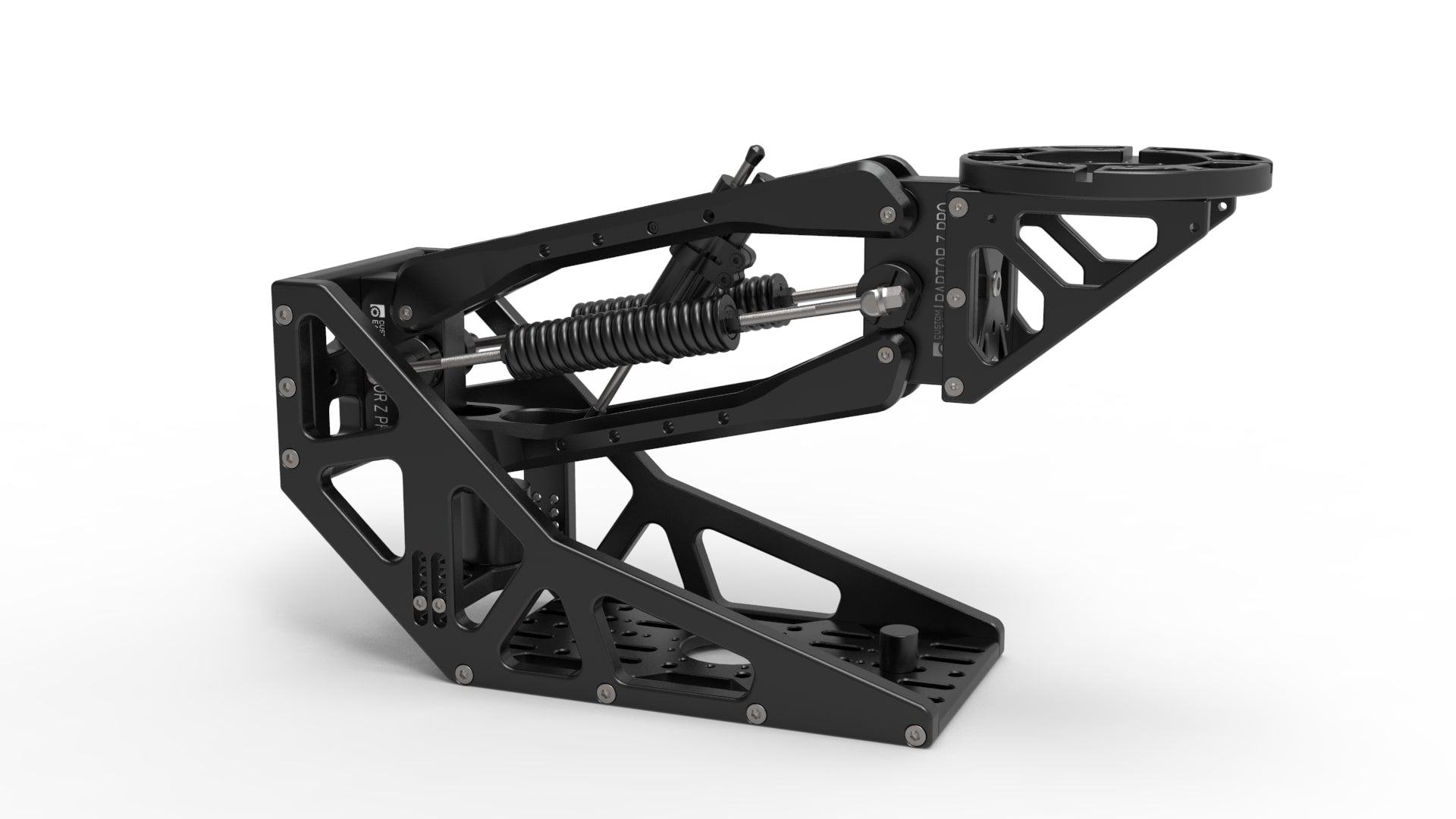

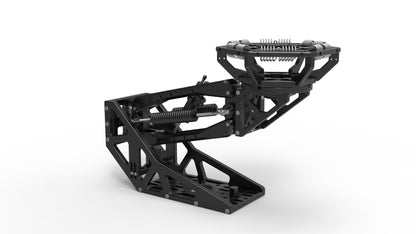

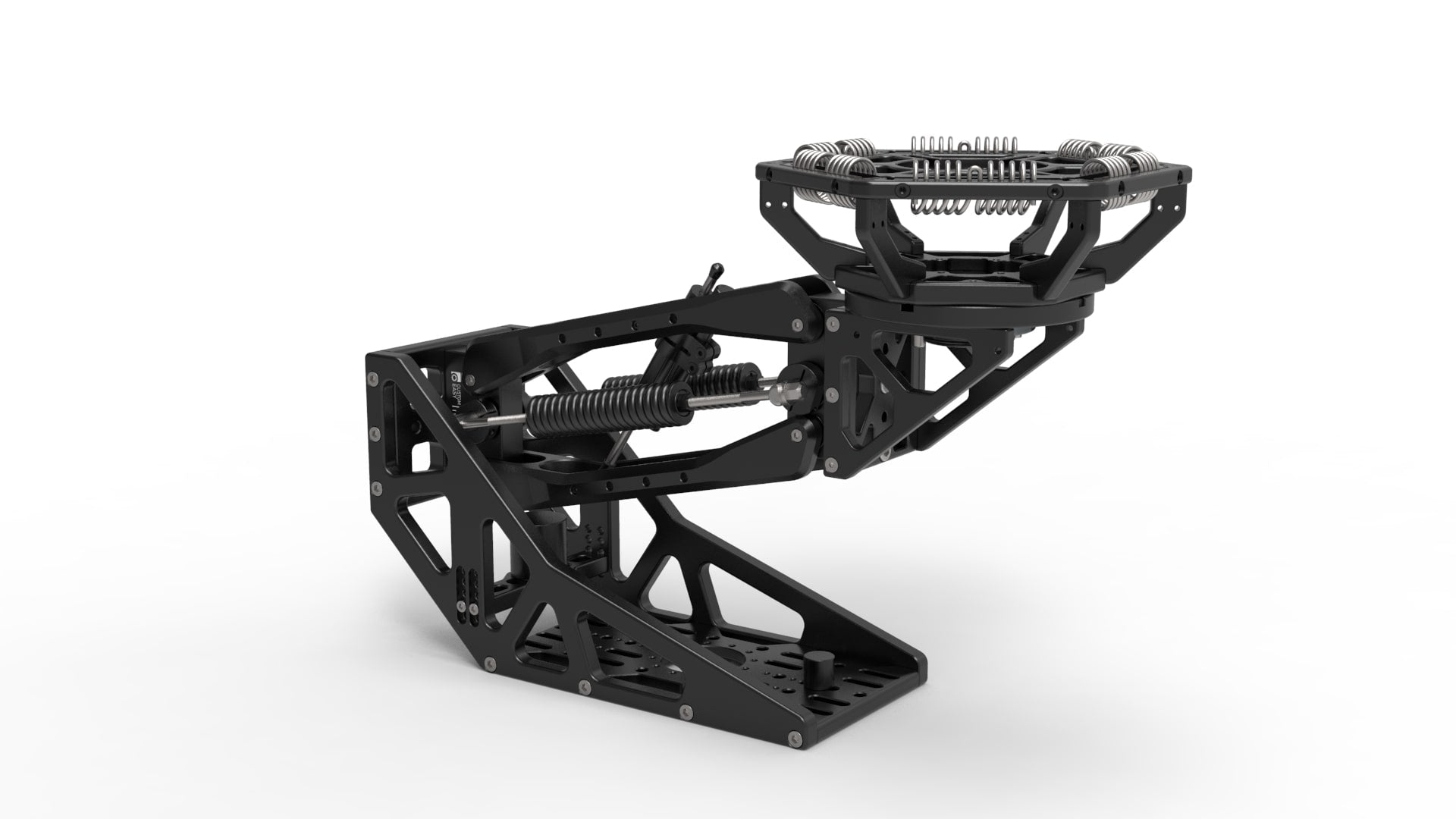

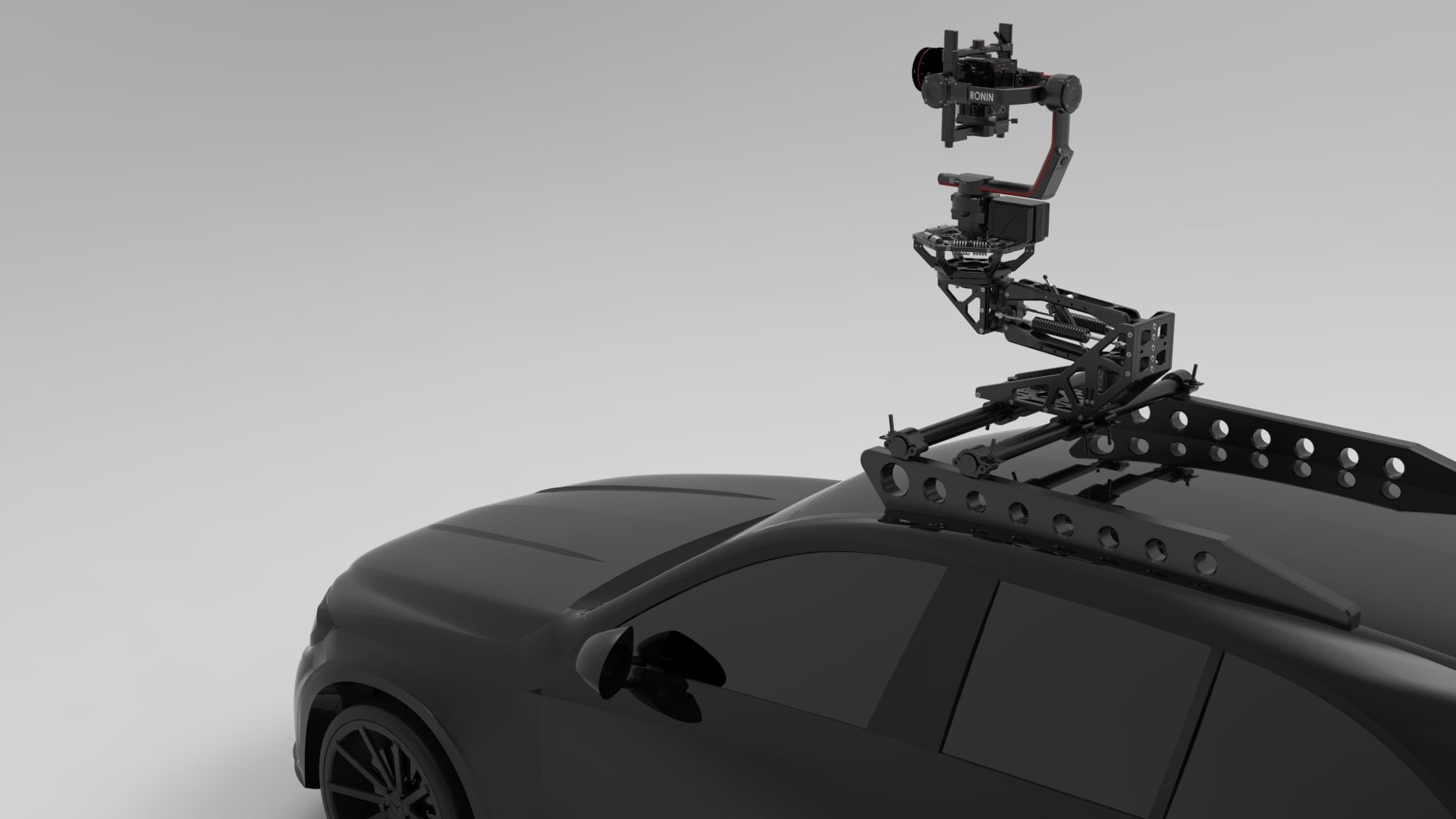

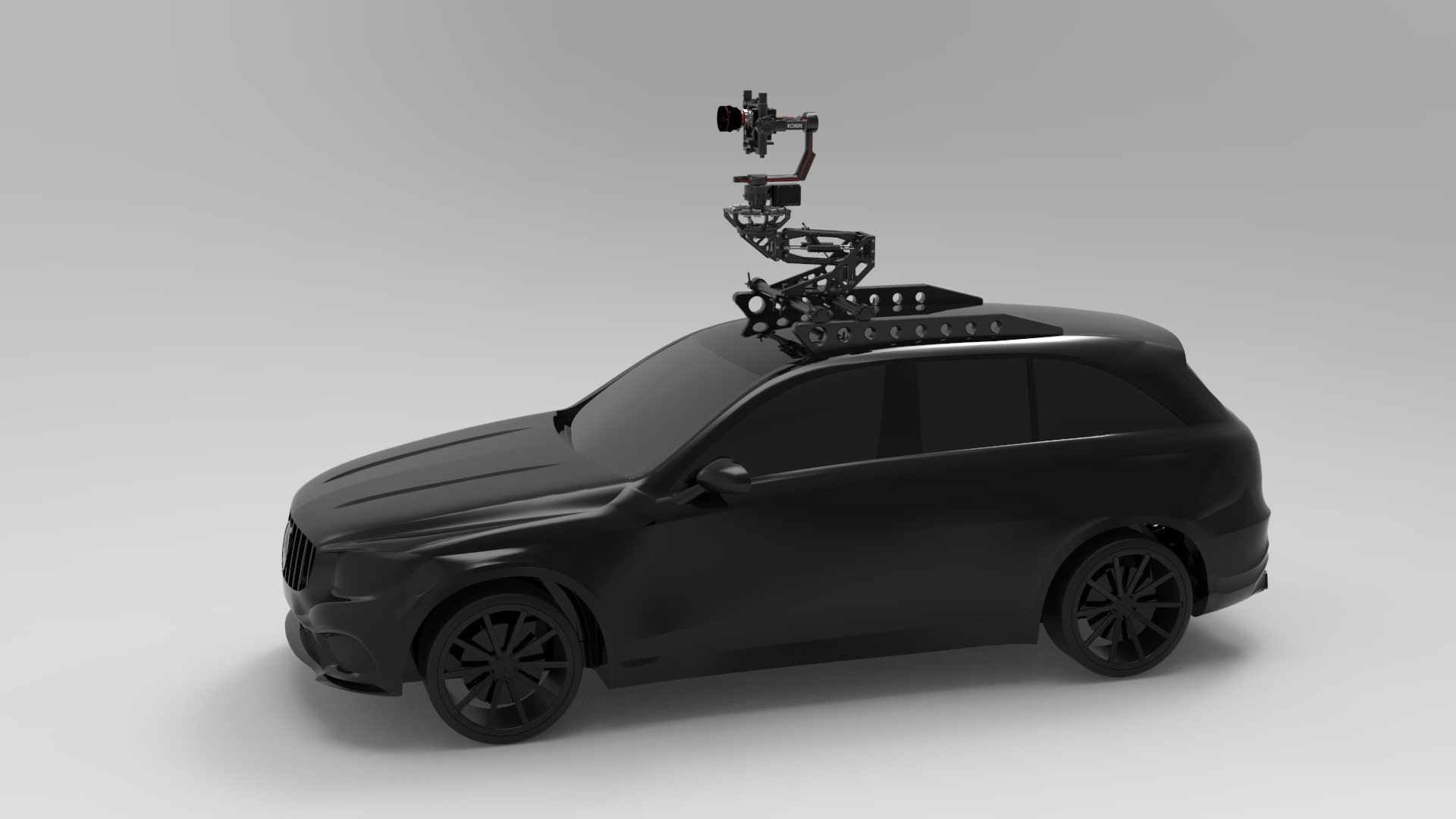

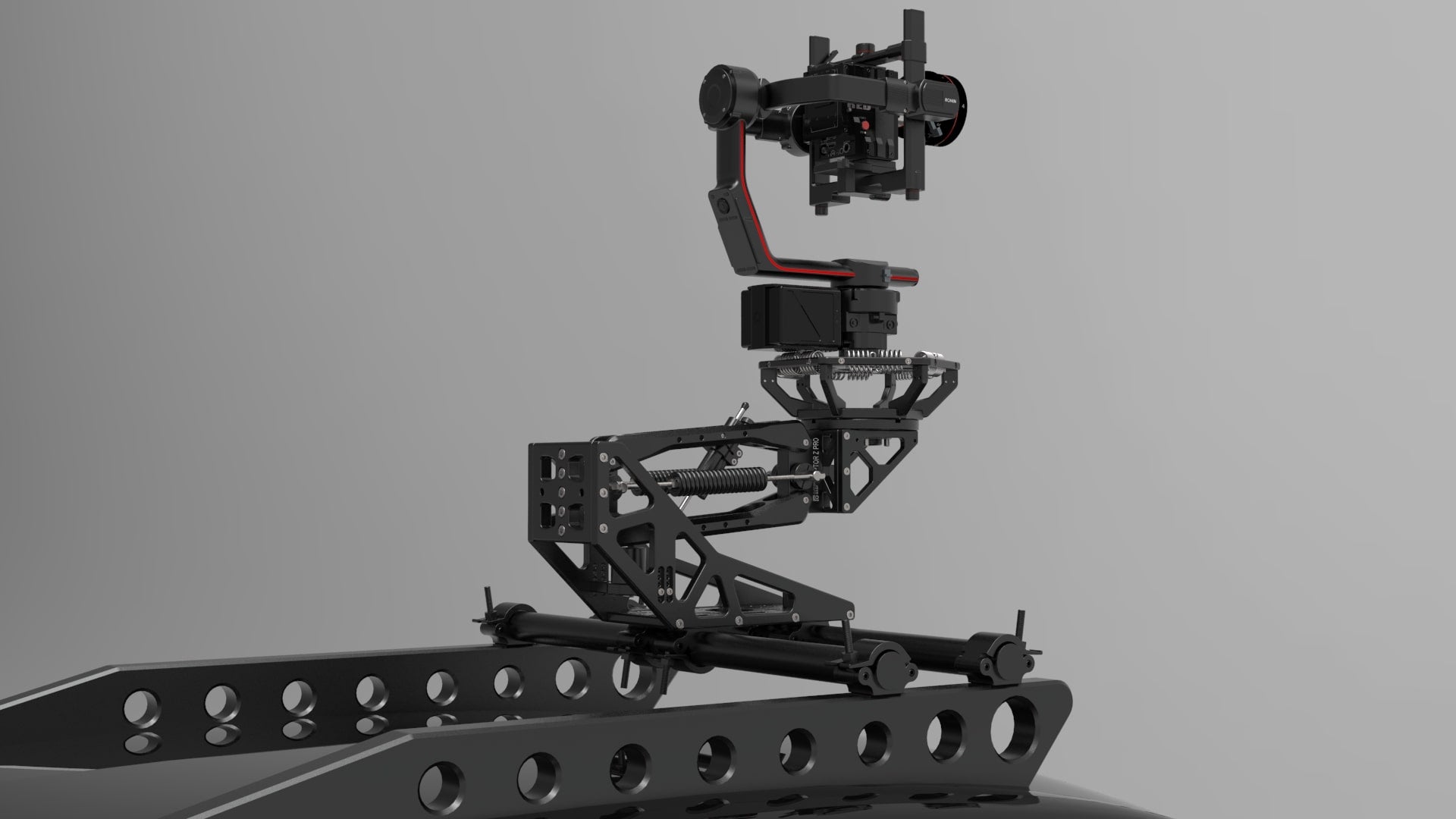

The Raptor Z Ultra Mount is the back-mount answer for your Raptor Z Arm or Raptor Air — built for shock-absorbing arm work on top of a car or on a hard mount, where travel and control matter most.

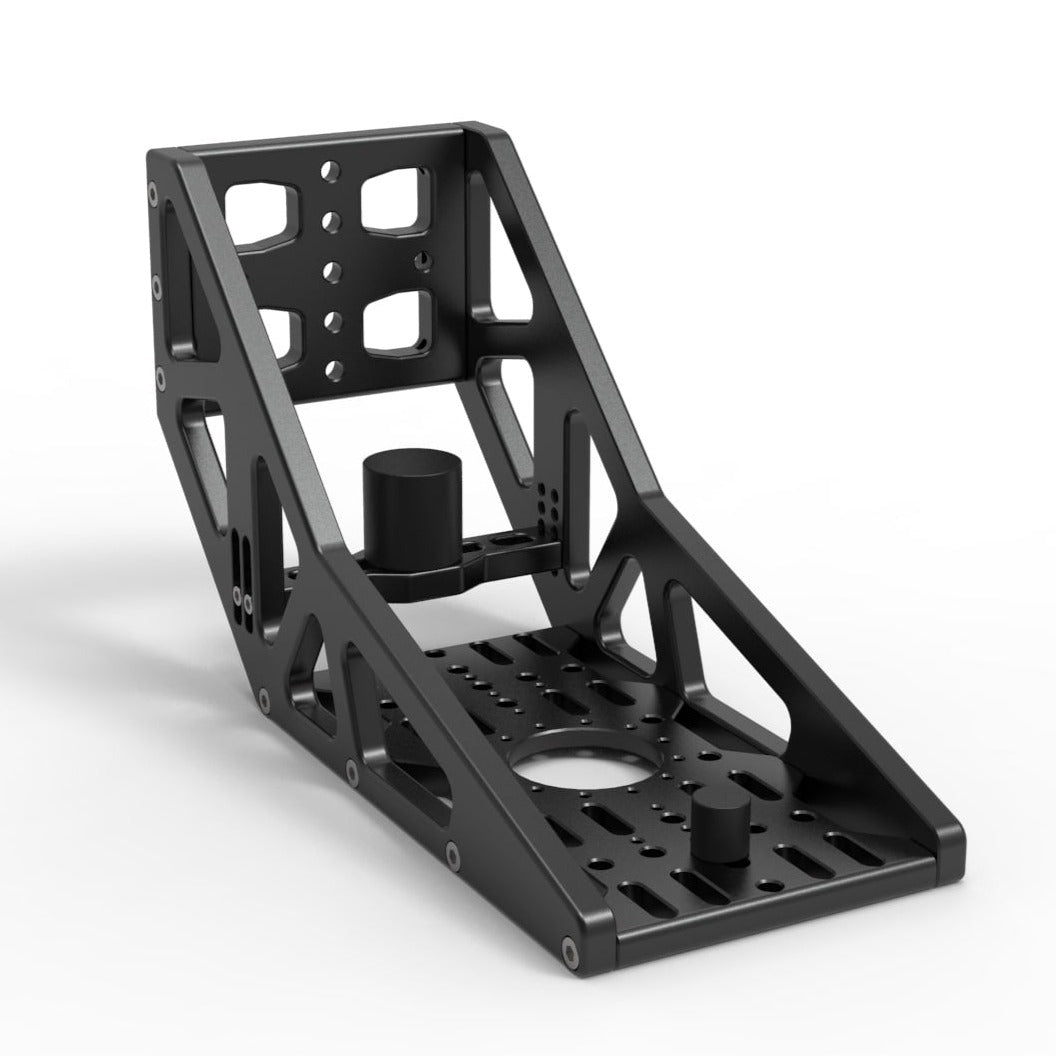

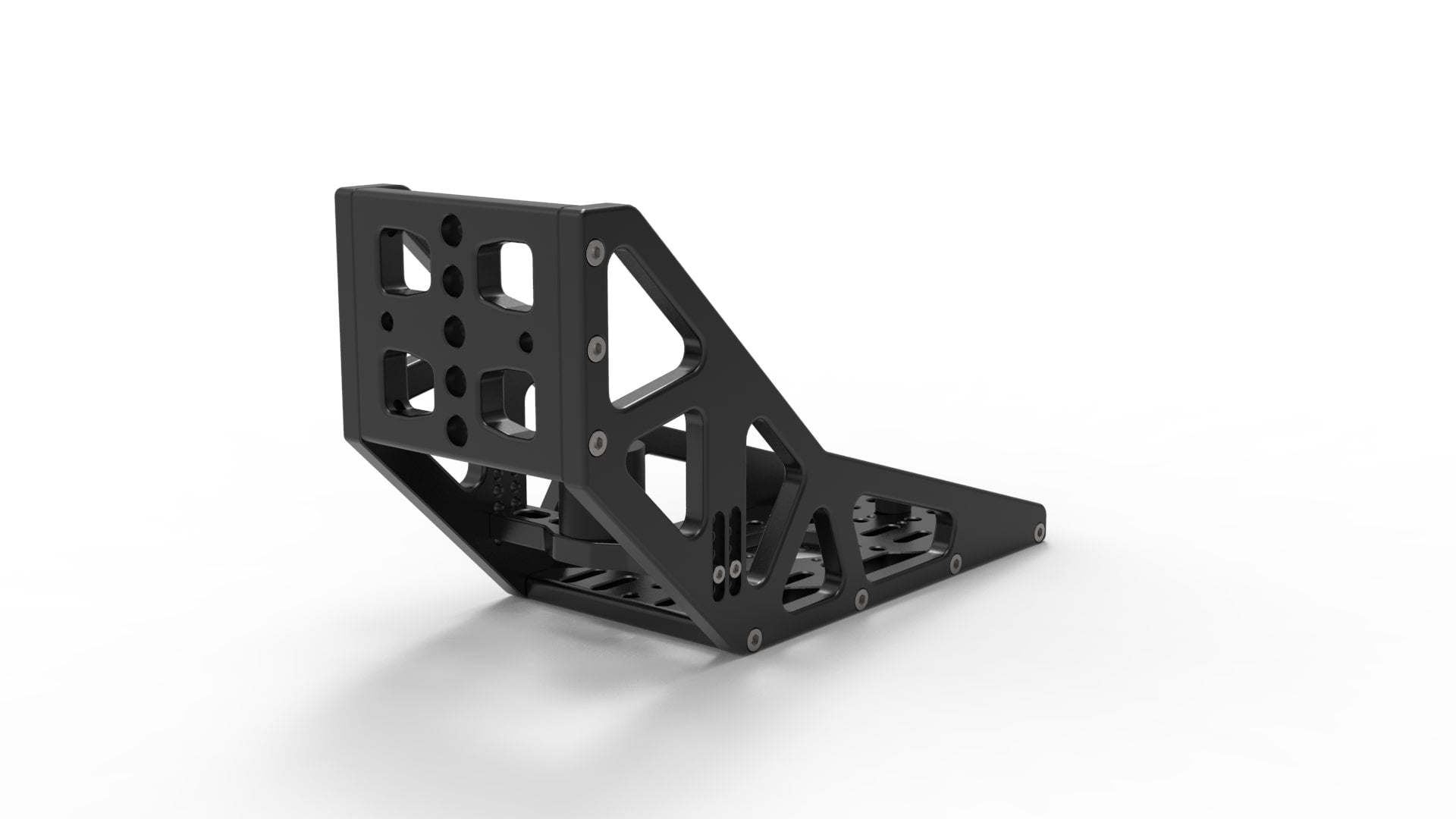

Compared to a standard mount, the Ultra Mount adds a bump stop and noticeably more travel, so the arm can do its job soaking up hits instead of bottoming out mid-take. The mounting platform is cut with 3/8" slots on a 1" hole pattern, taking M10 or 3/8" bolts, and the whole assembly bolts down with five M10s — solid enough to trust with a stabilized arm working hard over rough pavement.

Specs

• Construction: machined aluminum

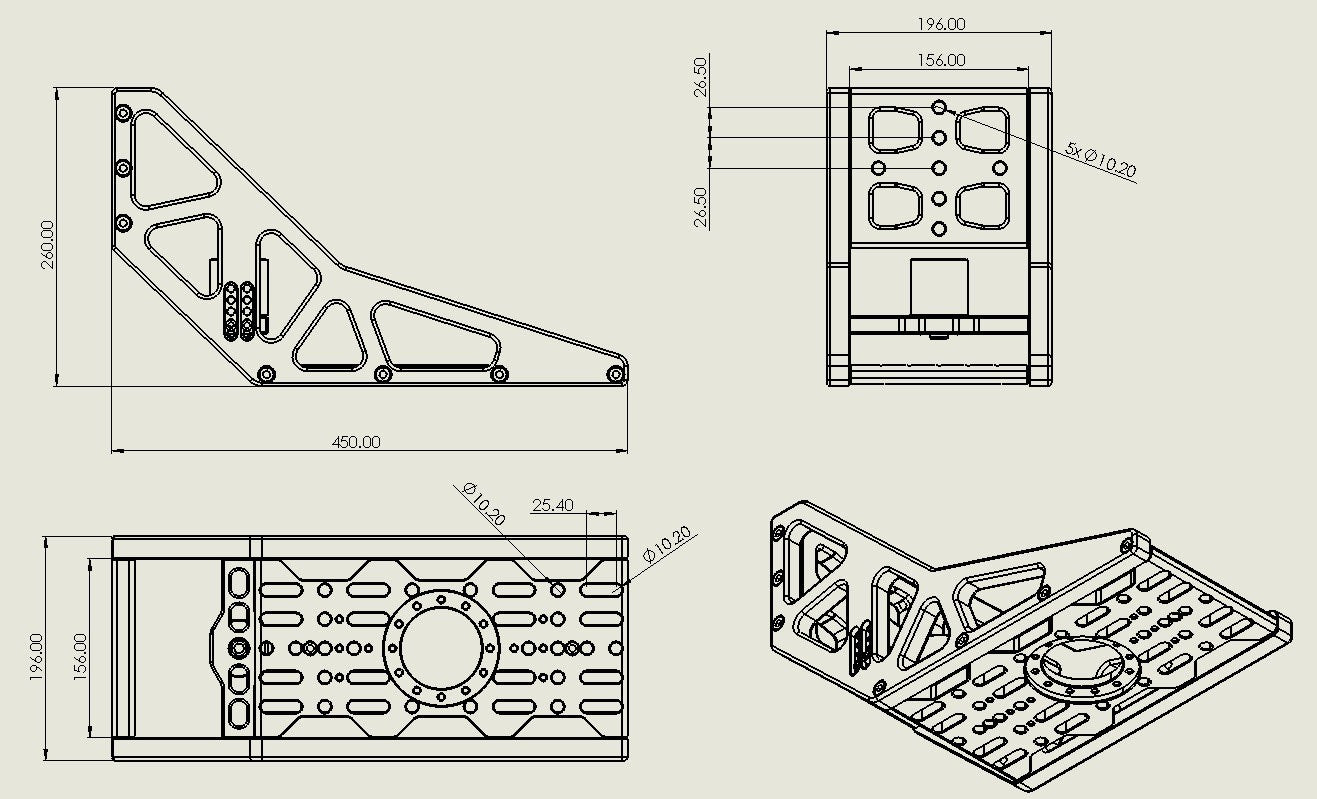

• Dimensions: 450 x 260 x 190mm (L x W x H)
• Weight: 5.2 kg (11.5 lb)
• Maximum payload: 25 kg (55 lb) with heavy/dual springs
• Platform: 3/8" slots on 1" hole pattern, accepts M10 or 3/8" bolts
• Mounts with 5x M10 bolts
• Compatible with Raptor Z Arm and Raptor Air

What's in the box

• 1x Raptor Z Ultra Mount
